Pen Type Leeb Hardness Color Screen Tester LM300 Pocket-Size Leeb Hardness Tester

1 Piece
MOQ
Pen Type Leeb Hardness Color Screen Tester LM300 Pocket-Size Leeb Hardness Tester
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Garantie: 3 jaar
Type: Leeb-hardheidsmeetapparaat in pocketformaat
Plaats van herkomst: Liaoning, China
Merknaam: YUSHI
Modelnummer: LM300
Productnaam: Leeb-hardheidsmeetapparaat in pocketformaat
Hardheidsschaal: HL, HB, HRB, HRC, HV, HS, Sterkte
Effectapparaten: D type effectapparaat (Norm); Verwisselbaar DL-type effectapparaat
Het meten van richting: 360 graad
Resolutie: 1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS
Taal: Veelvoudige Talen
Kaliberbepaling: Automatisch
Macht: Lithiumbatterij (Capaciteit van 600 MA/H, voltage: 3.7 V)
Mededeling: USB 2,0, voor het laden of gegevensoverdracht die wordt gebruikt
Netto gewicht: 110g met Dtype-effectapparaat, 125g met DL-type effectapparaat
Basis informatie
Place of Origin: Liaoning, China
Merknaam: YUSHI
Model Number: LM300
Betalen & Verzenden Algemene voorwaarden
Productomschrijving

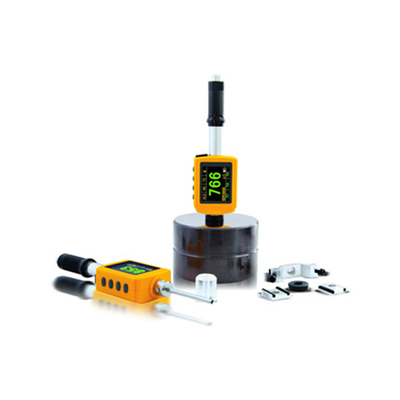

LM300/ LM330 Series Leeb Hardness Tester





Application

Defecting fields such as Installed Machineary and Permanent Assembly Parts, Mould Cavity, Heavy Workpieces, Pressure Vessels, Turbine and other Equipments and Small test area.



Brief Introduction

LM330 Portable Leeb Hardness Tester OLED Color Screen, Multifunctional and Integrated Hardness Testing Machine. Pen type design, no cable, the impact device and instrument body are integrated. Wireless Bluetooth printing. Interchangeable D/DL impact device can be used in the restricted area measurement. Bluetooth printer, no shackles of cable. Various Special Supporting Rings, Suitable for curved or irregular parts measurement.



Specifications of LM300 Sereis Leeb Hardness Tester

Display

1.77 inch OLED with resolution 160*128 pixels

Hardness Scale

HL, HB, HRB, HRC, HV, HS, Strength (σb)

Measuring Range

HLD(200-960) HRC(19.8-68.5)HRB(13.5-100) HB(30-651)HV(80-976) HS(26.4-99.5)σb(375-2639)

Impact Devices

D type impact device (Standard); Interchangeable DL type impact device (Optional)

Accuracy

Measuring Error:±6HLD (HLD=800), Repeatability:±6HLD (HLD=800)

Measuring Direction

360 degree

Material

Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Copper-zinc alloy, Copper-tin alloy, Brass, Forged Steel, Alloy Tool Steel

Resolution

1HL,1HV,1HB,0.1HRB,0.1HRC,0.1HS

Calibration

Automatic

Language

Multiple languages

Power

Lithium battery (Capacity of 600 MA/H, voltage: 3.7 V) or Alkaline battery

Data Memory

1000 groups (each group includes 2-6 testing values and 1 average value)

Communication

USB 2.0, Used for charging or data transfer

Software

LMView software for transmission, storage and printing

Shut-off

Auto off after 3 minutes of inactivity

Temperature

-10℃~ +50℃

Net Weight

110g with Dtype impact device, 125g with DL type impact device

Standard Configuration

LM300 Series Leeb Hardness Tester, Standard hardness Test block, Support Ring, Cleaning Brush, Packing Files

Optional Accessories

Hardness Test Blocks, Bluetooth Printer, Support Ring, DL Connector.
