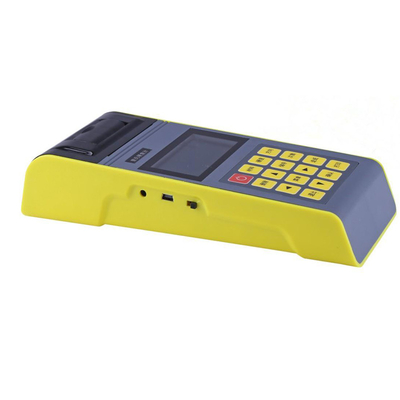

Leeb Hardness Tester With Color Printer And Screen GHT-160 GHT160

Portable printing Leeb hardness tester

Integrated printing GHT300 portable durometer is combined the main body and printer together, which is convenient for the user to print out the test data. So it’s specially suitable for the outdoor working. Its cost performance is also the best. This tester is designed by streamline human engineering structure, equipping with standard bracket, adopting big screen LCD 128×64 display. The indication is very rich and visual without blind angle, which is easy for operation and data reading.

Application material:Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper, forging steel.

Application field:

1.Machining industry
2.Specially suitable for large parts and sealed parts hardness testing on site
3.Mould cavity and core.
4.Heavy type work-piece.
5.Pressure vessel, steam turbine generator unit and its device failure analysis.
6.Quite narrow testing area work-piece.
7.Bearing and other parts.
8.Distinguish metal materials in the warehouse.
9.Large-sized work-piece wide range quick re-test.

Designed by: Leeb durometer technical condition JB/T 9378-2001; D type high precision impact device.

Industrialized shell design, strong, compact, portable, high reliability, suitable for bad operating environment, resistance to vibration and impact and electromagnetic interference;

Shore (HS), Leeb (HL), Brinell (HB), Rockwell (HRC/HRB/HRA), Vickers (HV) 7 kinds hardness value can be realized by one time measurement with automatic conversion;

High-capacity nickel-metal hydride rechargeable batteries and charging control circuit. battery remaining capacity indicator icon. Charging status can be known at any time by the charging process instructions.

Boot software calibration value function ensures that the data is applicable and accurate in any industry under different norms and standards ;

Optional seven different impact device. No need calibration when changing due to automatic identification;

Can be preset limit value, exceeding alarm;

Can store 450 groups measurements in the menu, backlit display, convenient operation;

Can be equipped with powerful microcomputer software. There are many functions such as transmission measurement results,data storage management, data statistical analysis, printing measuring reports, which can meet the higher demand of quality assurance activities and management;

Can continuous work for not less than 300 hours (not print). Has automatic standby&shutdown power saving function.

a.Customer:What about the transportation?

Answer:It depends on your requirement .we can deliver by air to your airport,or y sea to your seaport .and normally we deliver to your office address by express courier .and we also accept to co-operate with your ship agent or forwarder .


b.Customer:What about the after-sale service?

Answer:Guarantee period is 12 months ,after the warranty ,we also provide life-long paid repair or service.


c.Customer:What about the delivery date ?

Answer:Usually we offer two days after order confirmed and payment received
