Battery Crush Test Electric Vehicle Battery Crush Test Equipment Battery Safety Test Equipment

1.0 Pieces
MOQ
Battery Crush Test Electric Vehicle Battery Crush Test Equipment Battery Safety Test Equipment
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Customized support: ODM
Place of Origin: Guangdong, China
Merknaam: GAOXIN
Model Number: GX-5067-A
Power: Electronic
Application: Battery crush test
Drive method: Hydraulic drive
Max force: 100T(or customized)
Data sampling: 200 times/second
Function: Crush test/Safety performance test
Certificate: ISO9001:2008
Warranty: 12 Months
Type: Box-type battery crush tester
Crush Direction: Perpendicular to the direction of plate or single cell array
Transmission: Serial port of RS 232 or USB
Basis informatie
Place of Origin: Guangdong, China
Merknaam: GAOXIN
Certificering: ISO9001:2008
Model Number: GX-5067-A
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Packagin with strong wooden case
Supply Ability: 45 Piece/Pieces per Month
Productomschrijving

Electric Vehicle Battery Crush Testing Equipment Battery Safety Test Equipment UL 1973-2018 safety Battery for Fixed Vehicle Auxiliary Power and Light Electric Railway

Product Description

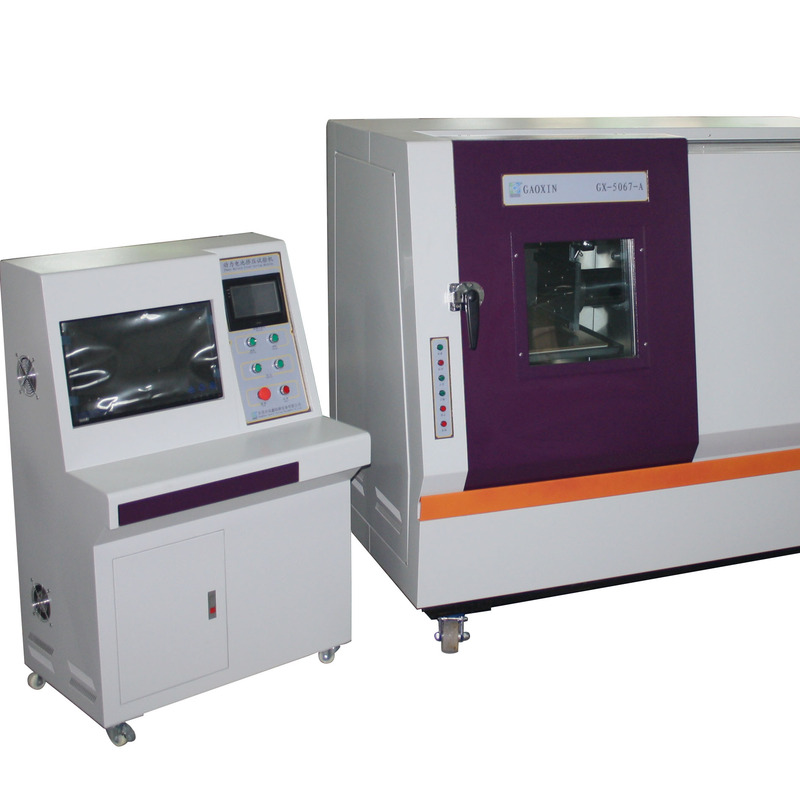

1.Product Name:Power battery crush testing machine

2.Product Model:GX-5067-A

3.Test Standard:

QC/T 741-2006Ultra Capacitors for Vehicles

QC/T 743-2006Lithium-ion Batteries for Electric Vehicles

QC/T 744-2006 Nickel-metal Hydride Batteries for Electric Vehicles

GB/T 18332.2 Nickel-metal Hydride Batteries of Electric Road Vehicles

GB/T 18332.1 Lead-acid Batteries Used for Electric Road Vehicles

GB/T 22199 Sealed Lead-acid Battery Used for Electric Moped

4.Decription:The machine is designed for the crush test of batteries by simulating the crush conditions

the battery can suffer and display the crush results artificially. It is mainly used for the safety performance of the batteries. Safety precautions have been prepared and can prevent any damage to the tester and the environment.

5.Test Principle:

For the single battery: Use the crush head with the area of no less than 20 cm2 to crush the battery perpendicularly to battery plate. Increase the crush force until the battery crack or the internal short circuit (Voltage is 0 V)

For the battery module: Use the sketch plate to add the crush force on the battery module perpendicularly to single battery array orientation. Crush the battery module to 85% size of its original size and hold on for 5 minutes. Then continue to crush to 50% size of its original size. Then check the battery module. It is qualified if there is no fire or explosion.

Technical Parameter

Drive method

Hydraulic drive

Data sampling

200 times/second

Max force

100T(or customized)

Crush stroke

500mm(right to left)

Test space

(W x D x H)

500 × 500 × 500mm

(or customized)

Force display accuracy

±10.0kg,

Transmission

Serial port of RS 232 or USB

Sensor resolution

1/10,000

Displacement

resolution

0.005 mm

Time delay

Set freely

Crush Direction

Perpendicular to the direction of plate or single cell array

Data sampling

connect

Hole on the left with the diameter of 50mm

Force display

High-accuracy sensor and computer display

Force guide column

Double-screws with high accuracy

Unit changes

Kgf, lbf, N, KN, Kpa, Mpa

Power

AC380V, 50~60HZ, 10A

Structure

Box-type

Observe window

Observing window on the front of the tester

(300mmx300mm)

Interior box

SUS#304 stainless steel

Outward box

cold-roll steel sheets with the paint process, universal wheel for transfer

Single cell crush plate

Circular plate with the diameter of 20 cm, or semi-cylinder with the radius of 75mm and height over the cell,easy for change

Battery module crush plate

Like the picture below, the diameter of the half-cylinder is 75mm and the interval is 30mm, and the whole plate is 300mm x 150mm. Or semi-cylinder with the radius of 75mm and height over the cell,less than 1m.

Transaction information:

Packaging

Fumigation-free wooden case

Warranty period

One-year

Delivery time

15-20 days

Delivery term

FOB Shenzhen

Payment method

50% deposit, 50 % balance by T/T

Our Services

Dongguan Gaoxin Testing Equipment Co., Ltd.

Have independent production base plant.

Strong design and manufacturing capabilities.

Strong technical force and high-quality after-sales service.

Efficient after-sales service team.

A number of certification qualifications.

Factory outlets, so that customers benefit the most.
